Motion control for theme park rides, animatronics and 4D theatres

In short:Theme park motion is high-duty, show-critical machinery: animatronics and 4D seats run electric actuators and servo motors through millions of cycles a year, while carousels and observation wheels need slip rings to get power and data onto the rotating structure. Size every axis for the full operating season, not one show, and design ride safety functions to EN 13814 with a SIL or PL set by risk assessment.

Typical requirements

Machinery we specify motion for

• Animatronic figures
• Dark ride vehicles
• 4D theatre and motion seats
• Flying theatres and ride motion bases
• Carousels and merry-go-rounds
• Ferris and observation wheels
• Haunted house and show effects
• Interactive attraction props

What theme park motion demands

Theme park machinery has two jobs. It must create convincing motion: a figure that breathes, a seat that pitches with the film, a vehicle that turns to face a scene. And it must do so all day, every operating day, under a formal ride safety regime. The motion components are familiar from industry. What changes is the duty, the environment and the inspection.

Tolomatic lists amusement ride props, animatronic characters, theatre motion seating, motion simulators and haunted houses among its entertainment work, and singles out repetitive ongoing shows as high-duty-cycle applications. Curtiss-Wright Exlar says smooth, repeatable, life-like motion is mandatory for animatronics, and that roller screw actuators deliver it over millions of cycles.

Electric vs hydraulic vs pneumatic for rides and figures

Exlar quotes electric speeds up to 1.5 m/s and about 90% efficiency, with less maintenance, less infrastructure and quieter running. Kraftwerk builds 3- and 4-seat motion bases with 3 or 4 DOF (pitch, roll, heave, sway), recommends pneumatic drive for large theatres and electric for smaller venues, and its electric version needs less infrastructure and runs more quietly. Moog supplies dark ride and 4D theatre motion in hydraulic, electric and hybrid forms. The trend is clear, but the choice is still per axis. Our hydraulic to electric actuator guide covers the conversion maths.

Where the motion components sit

Animatronics: many small axes, all on show

An animatronic figure is a dense multi-axis machine hidden inside a skin. Each joint is small, but the figure may carry dozens of them, and every one is seen by guests at close range. That drives three choices. First, smoothness: servo-driven ball or roller screw actuators and zero-backlash strain-wave gears avoid the judder that breaks the illusion. Second, packaging: actuators and drives must fit inside the figure’s frame, with cables routed so they survive constant flexing. Third, heat: an enclosed figure has little airflow, so motor and drive continuous ratings must be de-rated and checked against the show’s RMS duty. Absolute feedback on every axis lets a figure start in a known pose without a homing routine in front of guests.

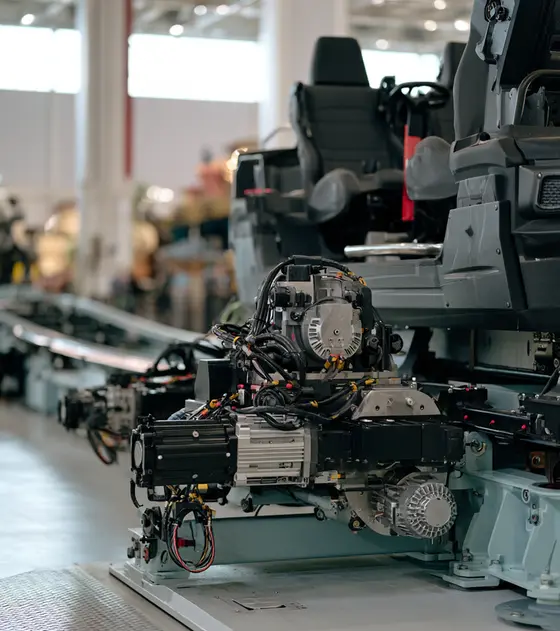

Dark ride vehicles and motion bases

A dark ride vehicle combines a traction drive, often a rotating seat platform and sometimes a motion base, all running from on-board power or a bus bar. That makes it a mobile machine: compact DC servo drives, wheel-hub gearboxes, encoders that tolerate vibration and a slip ring wherever the seat rotates continuously. Vehicle-mounted electronics see shock, dust and temperature swings that a plant room never does, so ask for IP-rated, extended-temperature drives. Larger flying theatres and motion bases use roller-screw actuators sized for high force and long life.

Slip rings for carousels, wheels and rotating rides

Any ride that rotates continuously and carries lighting, music, effects or drives needs a slip ring. Carousels pass circuits through the centre column, so a large-diameter or through-bore unit is normal. Observation wheels and roundabouts turn slowly, which favours carbon-brush high-current slip rings that are large but easy to maintain. Rides with pneumatic effects on the rotating part can combine air passages and electrical circuits with a rotary union. Outdoor and water rides need a sealed marine-grade housing. See slip rings for amusement rides.

Safety and compliance: EN 13814 and HSG175

EN 13814-1:2019, now amended by A1:2024, sets minimum requirements for the safe design, calculation, manufacture and installation of mobile, temporary and permanent amusement devices, from roundabouts and swings to ferris wheels and roller coasters. It applies to new designs and major modifications. EN 13814-3 defines the independent inspections during design, manufacture, operation and use. In Great Britain, HSE’s HSG175 (third edition, 2017) is the guidance for operators, designers, manufacturers, suppliers and inspection bodies.

For control systems, HSE research report RR1080 shows how quantitative risk assessment sets a target SIL for ride control systems, and points to IEC 61508 and EN 13849 techniques such as multiple channels and extensive internal diagnostics. For components that means asking drive suppliers for STO and safe motion ratings, and encoder suppliers for diagnostic and reliability data.

Worked example: sizing a 4D seat actuator for a season

Take a 3-seat, 3-DOF electric base with three actuators. Assume 100 kg per rider as a design mass and 60 kg of seat frame, so 360 kg moving.

1. Static load per actuator: 360 × 9.81 ÷ 3 ≈ 1.18 kN.
2. Dynamic load: heave acceleration of 0.5 g adds 50%, giving about 1.77 kN.
3. Uneven loading: when the base pitches with heavy riders on one side, one actuator carries more than its share. A 1.5 factor brings the peak to about 2.6 kN per actuator.
4. Life: a 5-minute film with 300 reversals, run 6 times an hour for 12 hours on 365 days, is 6 × 12 × 365 × 300 ≈ 7.9 million strokes a year. Run the screw’s L10 life calculation at the RMS load over that duty, not the peak.
5. Heat: calculate RMS force over a full show cycle, including idle time between shows, and check it against the actuator’s continuous rating at the plant-room temperature.

These are illustrative numbers. The point is that life and heat, not peak force, usually decide the size. Read how to size a linear actuator and ball screw vs roller screw.

Typical pitfalls

1. Sizing for one show, not the season. Screw, bearing and brush life must cover the operating year with planned maintenance.
2. Ignoring guest-side noise. Fans, gear whine and pneumatic exhaust break the illusion.
3. No plan for power loss. Decide what each axis does: hold, lower slowly or return to a safe position.
4. Outdoor rides with indoor parts. Wheels and carousels see rain, UV, frost and condensation.
5. Treating show control as safety control. Keep safety functions in rated hardware.
6. No spares strategy. Parks run long seasons; standardise actuator and motor sizes across figures and effects so a small stock of spares covers many axes, and confirm long-term availability before the design is frozen.
7. Forgetting the inspection body. Independent design review and inspection under EN 13814-3 need calculations, safety data and component documentation, so ask suppliers for them early.

What to send an engineer

Send moving masses and geometry, strokes or angles, speeds and accelerations or a sample show file, show length and shows per day, operating days, environment, noise limits, supply, fieldbus and show controller, and the safety functions from the ride’s risk assessment. Our specialist engineering and supply partners can propose matched actuators, motors, drives, encoders and slip rings.

Standards to have in view

• EN 13814-1:2019+A1:2024 (amusement rides and devices: design and manufacture)
• EN 13814-2:2019 (amusement rides and devices, part 2; devices inspected under EN 13814-3 follow parts 1 and 2)
• EN 13814-3:2019+A1:2024 (requirements for inspection during design, manufacture, operation and use)
• HSG175 (HSE: fairgrounds and amusement parks, guidance on safe practice, third edition 2017)
• IEC 61508 (functional safety, SIL)
• EN ISO 13849-1 (safety-related parts of control systems, PL)
• IEC 60529 (IP codes)

Which standards apply depends on the end product and its market. Your engineer will confirm what the component itself needs to meet.
